Beamline Optics Simulation and Characterization



Beamline optics simulation and characterization is essential for the new beamline development as well as for improving the beamline operation. The optics group provides simulation and beamline measurement supports as well as develops advanced optics simulation methods and wavefront and coherence measurement techiniques.

















Advanced optics simulation code development

  • HYBRID

The HYBRID code is an efficient tool for beamline simulation.  It combines the geometric ray tracing and wavefront propagation. The code computes diffraction effects when the beam is clipped by an aperture or optics size and can simulate the effects of figure errors. It has been implemented into the ShadowVUI package in XOP and the OASYS-ShadowOUI. Aversion in Igor is also available upon request (contact Xianbo Shi)



  • MOI code

The code is under development in collaboration with the Shanghai Synchrotron Radiation Facility.  It simulates the propagation of the Mutual Optical Intensity (MOI) function through non-ideal optics. The MOI code can provide the intensity profile, the wavefront and the local coherence function at any location along the beamline.

  • Other codes

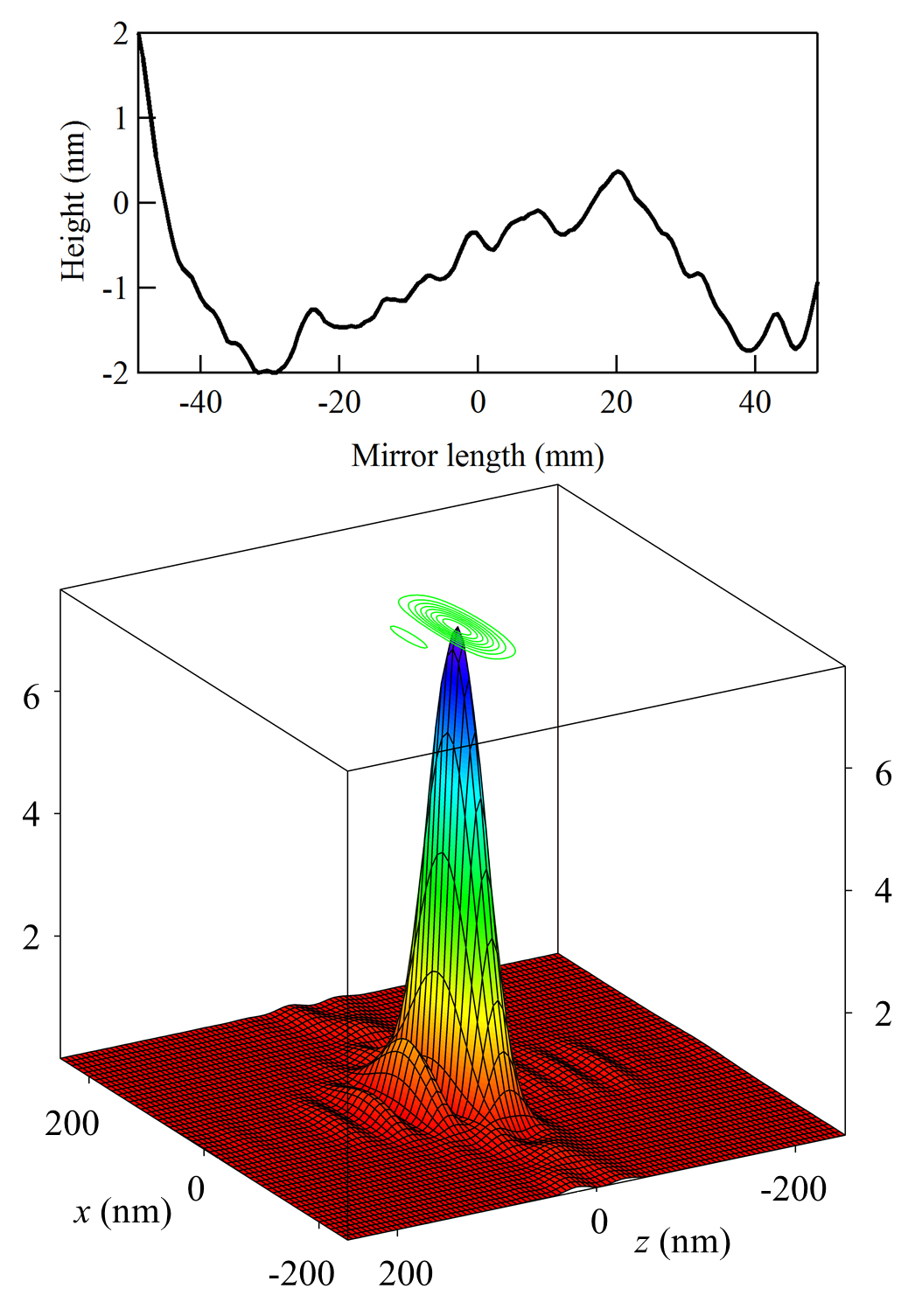

The optics group maintains the wavefront propagation codes based on the direct Fresnel-Kirshhoff integration and the stationary phase approximation for simulating figure error effects on grazing reflection mirrors.

Advanced techniques on wavefront and coherence measurements

The optics group is exploring various coherence characterization and wavefront sensing techniques based on the grating interferometry and speckle tracking. We focus on using the grating Talbot interferometry a the at-wavelength metrology and the wavefront sensing tools. We developed coherence measurement techniques using 2-D (checkerboard or circular) gratings.

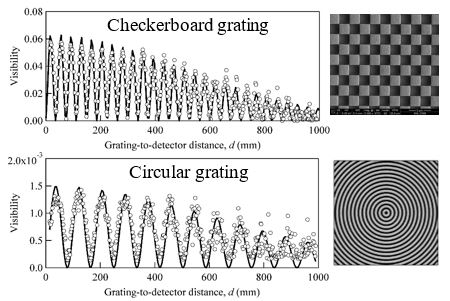

Coherence measurements of an undulator beamline using checkerboard grating and circular grating.

User support

The optics group staff provides support to APS and the APS upgrade project beamline optimization, optics simulation and beamline characterization (flux, beam size, beam vibration, wavefront and coherence).

Work requests can be submitted by filling the Optics Group's work request from.
