Activating Dioxygen to Convert Hydrocarbons

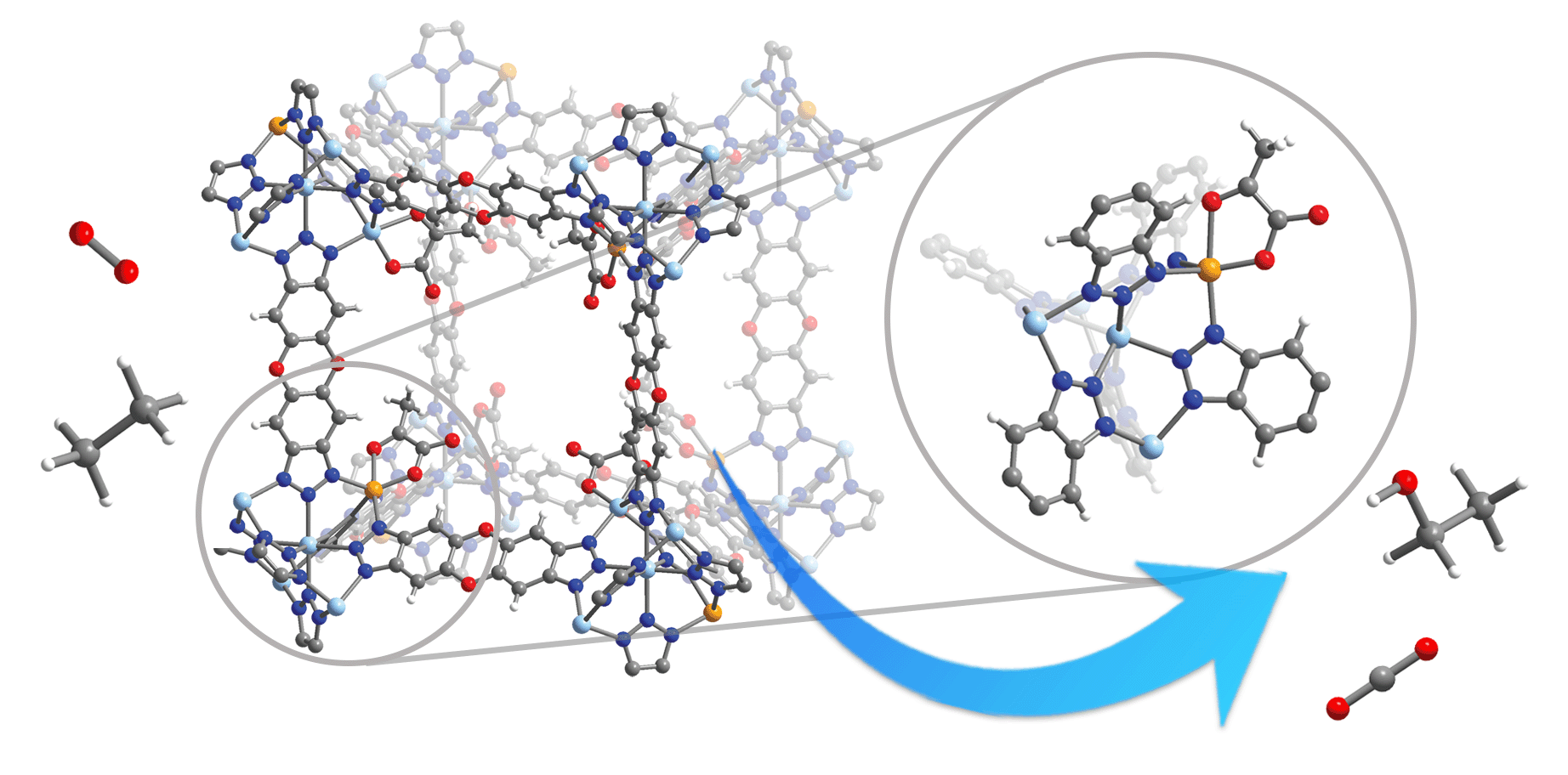

A colorful series of circles connected by lines, signifying atoms. A magnified view of one section of the illustration shows more exact detail.

Converting hydrocarbon gases into more valuable forms can help fight the buildup of atmospheric carbon that causes global warming, as well as providing a source of useful chemicals. Researchers have been searching for catalysts to make the process of reacting oxygen with such hydrocarbons more efficient. Now a group of scientists using the Advanced Photon Source (APS), a U.S. Department of Energy (DOE) Office of Science user facility at DOE’s Argonne National Laboratory, have demonstrated a catalyst that uses a ready source of oxygen and operates at near-ambient temperatures.

Many oxidation reactions rely on oxygen contained in some other molecule, such as hydrogen peroxide. But using dioxygen that’s readily available from the air would remove steps and simplify the process. Nature has already figured out how to do this, with enzymes containing, for example, non-heme iron–a form of iron that exists in plant tissues—that can activate dioxygen for hydrocarbon-oxygenation reactions. One such enzyme is taurine dioxygenase (TauD). TauD and its related dioxygenases are highly reactive because during the reaction they form a high-spin Fe(IV)=O species.

To mimic TauD, a team of researchers created a metal–organic framework (MOF), a porous structure made of metal nodes – in this case zinc and iron – and linked by organic molecules. Such MOFs can be easily tuned to specific needs by changing their chemical structure. The particular one created by the researchers was well suited to the catalytic oxygenation of hydrocarbons at roughly room temperature. Such low-temperature catalysis reduces the energy needed to run the reaction and makes the process more environmentally friendly than methods that require high temperatures.

The team tested their MOF by using it to turn ethane into ethanol through stoichiometric conversion and cyclohexane into cyclohexanol and cyclohexanone through catalytic oxygenation. The setup allowed the researchers to observe intermediates formed during the process, and they were able to spectroscopically characterize the Fe(IV)=O species.

To characterize their material, researchers performed powder X-ray diffraction at beamline 17-BM-B at the APS. That allowed them to take their starting material and treat it with oxygen at different temperatures, then check to see that the material remained crystalline at each stage. Such stability is important for a material being used as a catalyst in hydrocarbon oxygenation. They also performed nuclear resonance vibrational spectroscopy at beamline 3-ID-B at the APS. That allowed them to study the local structure of the Fe(IV)=O intermediate, and to confirm that it was that species.

Researchers also conducted studies at other facilities that helped round out the picture. Single-crystal X-ray diffraction analysis at the Advanced Light Source, a DOE Office of Science user facility at DOE’s Berkeley National Laboratory, let them examine the structure of the MOF. It showed that the structure was the same as it was in the powder diffraction work. Additionally, applied magnetic field Mössbauer spectroscopy at the Max Planck Institute for Chemical Energy Conversion in Mülheim and iron Kβ X-ray emission spectroscopy, performed at the BESSY-II light source at Helmholtz-Zentrum Berlin, helped confirm the high-spin state of the Fe(IV)=O intermediate. Diffuse reflectance infrared Fourier transform spectroscopy, performed on a custom-built setup in the researchers’ lab, provided additional information on the vibrational modes of the system.

Having demonstrated that their MOF works for hydrocarbon oxygenation, the researchers hope to extend its reactivity to other gases that may be more relevant for turning hydrocarbons into value-added alcohols, such as methanol. The work provides a foundation for developing new iron-containing MOFs to be used as catalysts that are similar to natural metalloenzymes in their reactivity.

Various state-of-the-art spectroscopic techniques, including the nuclear resonant vibrational spectroscopy (NRVS) at beamline 3-ID of the Advanced Photon Source, enabled the study of the nature of the material by isolating reactive sites and the reactive iron-oxo species. Such studies will benefit from the ongoing upgrade to the APS  that will deliver even brighter X-ray beams in the near future.

– Neil Savage
