Research Unearths Obscure Heat Transfer Behaviors

The original UCLA Samueli School of Engineering news story can be read here.

UCLA researchers and their colleagues, with data from investigations at two U.S. Department of Energy x-ray light sources including the Advanced Photon Source (APS), have discovered a new physics principle governing how heat transfers through materials, and the finding contradicts the conventional wisdom that heat always moves faster as pressure increases. Their results were published in the journal Nature.

Up until now, that common belief has held true in recorded observations and scientific experiments involving different materials such as gases, liquids, and solids.

The researchers have found that boron arsenide (BAs), which has already been viewed as a highly promising material for heat management and advanced electronics, also has a unique property. After reaching an extremely high pressure that is hundreds of times greater than the pressure found at the bottom of the ocean, boron arsenide’s thermal conductivity actually begins to decrease.

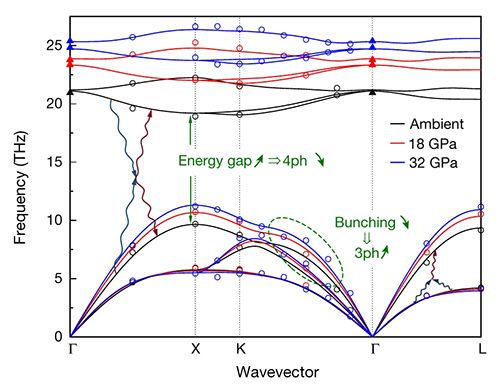

To achieve the extremely high-pressure environment for their heat-transfer demonstrations, the researchers placed and compressed a boron arsenide crystal between two diamonds in a controlled chamber. They then utilized quantum theory and several advanced imaging techniques, including ultrafast optics. To observe and validate the previously unknown phenomenon, the team also carried out pressure-dependent inelastic x-ray scattering measurements (Fig. 1) at the APS X-ray Science Division Inelastic X-ray & Nuclear Resonant Scattering (IXN) Group‘s 30-ID beamline at the APS at Argonne National Laboratory to directly measure the phonon dispersion of BAs, and pressure-dependent x-ray diffraction experiments to verify the crystal phase structure of BAs at the Advanced Light Source (ALS) beamline 12.2.2 at Lawrence Berkeley National Laboratory (both the APS and ALS are Department of Energy Office of Science user facilities).

The results suggest that there might be other materials experiencing the same phenomenon under extreme conditions. The advance may also lead to novel materials that could be developed for smart energy systems with built-in “pressure windows” so that the system only switches on within a certain pressure range before shutting off automatically after reaching a maximum pressure point.

“This fundamental research finding shows that the general rule of pressure dependence starts to fail under extreme conditions,” said study leader Yongjie Hu, an associate professor of mechanical and aerospace engineering at the UCLA Samueli School of Engineering. “We expect that this study will not only provide a benchmark for potentially revising current understanding of heat movement, but it could also impact established modeling predictions for extreme conditions, such as those found in the Earth’s interior, where direct measurements are not possible.”

According to Hu, the research breakthrough may also lead to retooling of standard techniques used in shock wave studies.

Similar to how a sound wave travels through a rung bell, heat travels through most materials by way of atomic vibrations. As pressure squeezes atoms inside a material closer together, it enables heat to move through the material faster, atom by atom, until its structure breaks down or transforms to another phase.

That is not the case, however, with boron arsenide. The research team observed that heat started to move slower under extreme pressure, suggesting a possible interference caused by different ways the heat vibrates through the structure as pressure mounts, similar to overlapping waves cancelling out each other. Ahmet Alatas, one of the co-authors of the paper and the person in charge of the HERIX spectrometer at APS Sector 30, said, “Such interference involves higher-order phonon interactions that cannot be explained in traditional harmonic approximation for the common materials.  Use of the IXS method to identify the pressure dependent phonon dispersion curve in full Brillouin zone was one of the critical ways to fully explain this ‘anomalous’ behavior from BAs.”  Ahmet added, “this kind of research will greatly benefit from the more intense and more stable x-ray beam at the post-APS Upgrade era.”

The results also suggest that the thermal conductivity of minerals can reach a maximum after a certain pressure range. “If applicable to planetary interiors, this may suggest a mechanism for an internal “thermal window” — an internal layer within the planet where the mechanisms of heat flow are different from those below and above it,” said co-author Abby Kavner, a professor of earth, planetary, and space sciences at UCLA. “A layer like this may generate interesting dynamic behavior in the interiors of large planets.”

See: Suixuan Li1, Zihao Qin1, Huan Wu1, Man Li1, Martin Kunz2, Ahmet Alatas3, Abby Kavner1, and Yongjie Hu1*, Anomalous thermal transport under high pressure in boron arsenide,” Nature (published 23 November 2022). DOI: 10.1038/s41586-022-05381-x

Author affiliations: 1University of California, Los Angeles, 2Lawrence Berkeley National Laboratory, 3Argonne National Laboratory
