A New Ribosome-Targeting Antibiotic Acts against Drug-Resistant Bacteria

The original University of Illinois Chicago “UIC Today” article by Jacqueline Carey can be read here.

A new study published in Nature reports on a new antibiotic that binds to the ribosome of bacterial cells and stops drug-resistant pathogens from making mice sick. Co-authored by researchers from the University of Illinois at Chicago (UIC) and Harvard University, the study, which cites data collected at the U.S. Department of Energy’s (DOE’s) Advanced Photon Source (APS), not only shows the potential of the drug—called iboxamycin—to one day help humans who are ill because of antibiotic-resistant bacteria, but also identifies how the drug overcomes the most widespread mechanism of resistance to this class of antibacterials.

The Nature study, “A synthetic antibiotic class overcoming bacterial multidrug resistance,” reports a new synthetic oxepanoprolinamide, which is a novel class of antibacterial drugs, that was developed and tested by the study co-authors from Harvard University is powerfully effective at fighting both gram-negative and gram-positive drug-resistant bacteria in mouse models.

The study also reports on the UIC discovery: the molecular mechanism that allows this drug to overcome resistance, which is important information the scientific community can use to make more informed decisions when searching for and developing new antibiotics and designing studies to test them.

“It was exciting to see this agent bound in the structure of a drug-resistant ribosome, and it was quite surprising that the drug binds in the same exact way as to the regular ribosome but causes significant structural re-arrangements that has never been observed before or could be predicted from the existing data,” said study co-corresponding author Yury Polikanov, UIC associate professor of biological sciences at the UIC College of Liberal Arts and Sciences and associate professor of pharmaceutical sciences at the UIC College of Pharmacy.

In previous research, Polikanov developed a unique approach for visualizing ribosomes that are resistant to conventional antibiotics. Through this process, he and Alexander Mankin, UIC professor of pharmaceutical sciences, reported in a January Nature Chemical Biology paper that methylation—a process of changing the chemical make-up of a nucleotide in the ribosomal drug binding site—results in the inability of such ribosomes to bind some clinically important antibiotics rendering such ribosomes drug-resistant.

To understand how and why iboxamycin manages to overcome resistance, Polikanov and UIC graduate student Egor Syroegin, study co-first author, applied their unique visualization techniques. The UIC researchers co-crystallized bacterial ribosomes with the drug and froze the crystals. Then, they used the Northeastern Collaborative Access Team (NE-CAT) 24-ID beamlines at the Argonne National Laboratory and DOE Office of Science’s APS to collect the x-ray diffraction data that was used to determine the molecule’s diffraction pattern—the places where the radiation bounced off the atoms in the crystals. This pattern was used to calculate electron density maps of the ribosome-drug complex and visualize their interactions at high resolution.

“The whole process of atomic structure determination using X-rays is like solving a 3D puzzle,” Polikanov said. “We identified the open place in the ribosome puzzle, and we just needed to find the drug piece that fit in it. Once we did that, we could see where and how the drug was bound to the ribosome.”

When the UIC researchers looked at their visualization of the Harvard drug interacting with the drug-resistant ribosome, they found something unexpected.

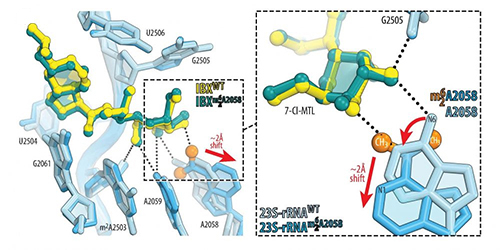

“We noticed that the most common resistance mechanism via methylation of the ribosome does not work against this new drug because it still binds to the methylated ribosome and evades this type of resistance. We’ve also noticed that iboxamycin actually caused the methylated nucleotide at the heart of the ribosome and right at the drug binding site to move out of the drug’s way so that both the drug and the methylated nucleotide in the drug-resistant ribosome can co-exist; this was totally unexpected and unprecedented,” Polikanov said.

“This shows us Mother Nature is much smarter than we are. There is certainly a place for rational drug design, but we can’t forget the importance of simple trial and error,” he said. “Neither iboxamycin’s spectrum of activity, nor its potency in resistant strains, could have been predicted from prior knowledge.”

See: Matthew J. Mitcheltree1, Amarnath Pisipati1, Egor A. Syroegin2, Katherine J. Silvestre1, Dorota Klepacki2, Jeremy D. Mason1, Daniel W. Terwilliger1, Giambattista Testolin1, Aditya R. Pote1, Kelvin J. Y. Wu1, Richard Porter Ladley1, Kelly Chatman1, Alexander S. Mankin2, Yury S. Polikanov2*, and Andrew G. Myers1**, “A synthetic antibiotic class overcoming bacterial multidrug resistance,” Nature, published on line 27 October 2021. DOI: 10.1038/s41586-021-04045-6

Author affiliations: 1Harvard University, 2University of Illinois at Chicago

Correspondence: * yuryp@uic.edu, ** myers@chemistry.harvard.edu

The study authors thank the staff at NE-CAT beamlines 24-ID-C and 24-ID-E for their help with data collection, especially M. Capel, F. Murphy, I. Kourinov, A. Lynch, S. Banerjee, D. Neau, J. Schuermann, N. Sukumar, J. Withrow, K. Perry and C. Salbego; S.-L. Zheng for X-ray crystallographic data collection and structure determination of compounds 6 and OPP-3. M.J.M. was supported by the National Science Foundation Graduate Research Fellowship under grant no. DGE1144152. K.J.Y.W. was supported by a National Science Scholarship (PhD) by the Agency for Science, Technology and Research, Singapore. G.T. received postdoctoral support from the Deutsche Forschungsgemeinschaft (TE1311-1-1). NE-CAT beamlines are funded by the National Institute of General Medical Sciences from the National Institutes of Health (P30-GM124165). The Eiger 16M detector on 24-ID-E beamline is funded by a National Institutes of Health-Office of Research Infrastructure Programs High-End Instrumentation grant (S10-OD021527 to NE-CAT). Extraordinary facility operations were supported in part by the U.S. Department of Energy (DOE) Office of Science through the National Virtual Biotechnology Laboratory, a consortium of DOE national laboratories focused on the response to COVID-19, with funding provided by the Coronavirus CARES Act. This work was supported by Illinois State startup funds to Y.S.P. and National Institutes of Health R21-AI137584 (to A.S.M. and Y.S.P.), R01-GM132302 (to Y.S.P.), and R35GM127134 (to A.S.M.). A.G.M. gratefully acknowledges support from the LEO Foundation (grant LF18006) and the Blavatnik Biomedical Accelerator at Harvard University. This research used resources of the Advanced Photon Source, a U.S. DOE Office of Science User Facility operated for the DOE Office of Science by Argonne National Laboratory under Contract No. DE-AC02-06CH11357.
