Capturing Protein Motions from Thousands of Fragile Protein Crystals

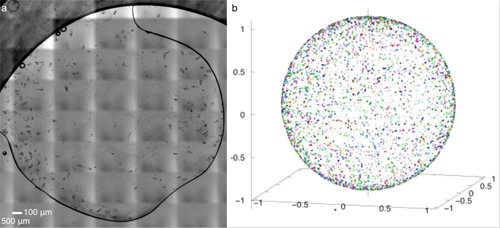

$Fig. 1. A protein is first crystallized on a coin-sized device designed for in situ diffraction. The device is then photographed at a high resolution of ~1 μm/pixel (a). For light-sensitive proteins, the photograph can be taken under infrared light so that the specimen is not activated. Crystals are recognized and mapped out by a computer vision software for users to plan x-ray exposures. Each targeted position is translocated into the x-ray focal spot in a sequence for exposure. For light-sensitive proteins, an excitation light pulse can be scheduled with respect to the x-ray exposure. Each crystal target only contributes a single diffraction image. Thousands of images can be collected in an automated fashion. Because of the randomness of the crystal orientations (b), a complete dataset can be synthesized from a few crystallization devices with an ordinary level of protein consumption. Figures adapted from Z. Ren et al., “An automated platform for in situ serial crystallography at room temperature,” IUCrJ 7(6), 1009 (November 2020). Open access$

To understand how proteins participate in physiological processes, scientists probe crystallized proteins using x-ray diffraction to determine their structures and how those structures change during physiological activities. However, proteins are fragile (compared with other carbon-based materials) and data collection conditions for investigating them don't always correspond to the protein's physiological temperature. A team of collaborators made changes to the basic diffractometer design to address these issues and using the U.S. Department of Energy’s Advanced Photon Source (APS) demonstrated how their new diffractometer platform automatically conducts large-scale, serial Laue diffraction at room temperature directly from the devices where the crystals were grown. Their results were published in IUCrJ.

There are two major hurdles to successful collection of structural information about proteins using x-rays. One is the difficulty in collecting data in an environment which allows scientists to watch the protein's physiological activities occur in crystals. Protein crystallography is commonly performed at below-freezing temperatures (called cryocrystallography) because x-ray radiation at room temperature damages the protein crystals quickly. The second is the complicated procedures to transfer, mount, load, and collect data on protein crystals without exposing them to physical stress or drying them out. To overcome these hurdles, the team of researchers from the University of Illinois at Chicago, Renz Research, Inc., and the University of Maryland developed an automated diffractometer platform with additional capabilities which collects monochromatic and Laue diffraction data of large arrays of protein crystals (Fig. 2). The platform minimizes the radiation damage to the crystals by requiring only a single x-ray exposure for each crystal. The platform collects data on large arrays of in situ protein crystals―crystals which are assessed in the same chamber where they were grown―allowing fragile proteins to be studied more easily without requiring sample manipulation. The platform includes hardware for holding the samples, the ability to adjust the position of the sample array for use with different sources and different facilities, and a Raspberry Pi computer, which interfaces between the diffractometer hardware and the computers used to control and collect data from the diffractometer. Figure 1 shows an example of the protein crystals and the range of their orientations.

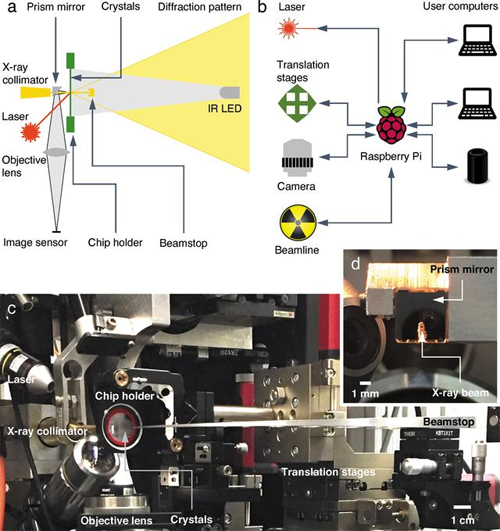

$Fig. 2. Compact inSituX diffractometer. (a) Schematic layout of the diffractometer at the beamline. Each subsystem is colored differently: the crystallization device and motion stages are green, the beamline components for x-ray diffraction are yellow, the optical imaging components are gray and the excitation light is red. (b) Schematic flowchart of our control system. At the center of the control system is a Raspberry Pi microcomputer, which coordinates the translation stages that carry samples with the imaging, x-ray and excitation subsystems, and communicates with multiple user computers for data analyses. (c) Diffractometer setup installed at the BioCARS 14-ID-B beamline. The diffractometer configured in the data collection mode is shown. (d) Micrograph looking into the prism mirror. This view is upstream along the x-ray beam. The final aperture of the x-ray beam is visible through the slot in the mirror.$

To demonstrate the efficacy of their platform, the team worked with two photosensitive bilin-based photoreceptors, which are representative of difficult types of proteins because they typically diffract weakly, their diffraction degrades quickly, and they are highly sensitive to visible light. The team used their previously published process to synthesize crystal-on-crystal sample arrays. They then collected Laue diffraction data at room temperature using the diffractometer platform with the BioCARS x-ray beamline 14-ID-B and the Life Sciences Collaborative Access Team x-ray beamline 21-ID-D, both at the APS, which is an Office of Science user facility at Argonne National Laboratory.

For the first protein (a far-red photoreceptor from Anabaena cylindrica), they compared the platform's results with those of previously collected cryocrystallographic data and found that the new platform provided better-resolved electron-density maps and refinement statistics. Additionally, the new platform's electron-density maps for the first protein had no gaps in the protein's backbone. For both proteins, the team also collected pump-probe data.

For the second protein (the photosensory core module of a bacteriophytochrome) they obtained a difference Fourier map which showed light-induced structural changes which were better-resolved than previously published cryocrystallographic data for the same photosensory core module.

The well-resolved structures of these fragile example proteins collected by the team at room temperature demonstrate the potential of this prototype diffractometer platform to reveal protein activities in physiologically-relevant environments, bringing us closer to better understanding of the cellular processes in which proteins participate. ― Mary Alexandra Agner.

See: Zhong Ren^1,2* Cong Wang¹, Heewhan Shin¹, Sepalika Bandara¹, Indika Kumarapperuma¹, Michael Y. Ren³, Weijia Kang¹, and Xiaojing Yang¹**, “An automated platform for in situ serial crystallography at room temperature,” IUCrJ 7(6), 1009 (November 2020). DOI: 10.1107/S2052252520011288

Author affiliations: ¹University of Illinois at Chicago, ²Renz Research, Inc., ³University of Maryland,

Correspondence: * zren@uic.edu, ** xiaojing@uic.edu

This work is supported by grants from the University of Illinois at Chicago, the National Institutes of Health (grant No. R01EY024363 awarded to X.Y.), and the National Science Foundation (grant No. MCB2017274 awarded to X.Y.). Use of BioCARS was supported by the National Institute of General Medical Sciences of the National Institutes of Health (grant No. P41 GM118217). Use of the Life Sciences Collaborative Access Team was supported by the Michigan Economic Development Corporation and the Michigan Technology Tri- Corridor (grant No. 085P1000817).

See also: “Crystal structure of a far-red–sensing cyanobacteriochrome reveals an atypical bilin conformation and spectral tuning mechanism,” PNAS 118 (12), e2025094118 (March 23, 2021). DOI: 10.1073/pnas.2025094118 and APS science highlight “A Monocrystalline Device for Room-Temperature Serial Diffraction”

This research used resources of the Advanced Photon Source, a U.S. Department of Energy (DOE) Office of Science User Facility operated for the DOE Office of Science by Argonne National Laboratory under Contract No. DE-AC02-06CH11357.
