The original Case Western Reserve University press release can be read here.
A light-sensing pigment found in everything from bacteria to vertebrates can be biochemically manipulated to reset itself, an important therapeutic advantage, according to new research out of Case Western Reserve University School of Medicine. In a study published in the Proceedings of the National Academy of Sciences, researchers successfully used a modified form of vitamin A, called “locked retinal,” to induce the recycling mechanism and engage proteins central to human vision. The targeted proteins include light-sensing rhodopsin, which belongs to a family of proteins—G protein-coupled receptors, or GPCRs—that sit in cell membranes and transmit external cellular cues into internal cell signaling pathways. The discovery, aided by research at the U.S. Department of Energy’s Advanced Photon Source (APS) at Argonne National Laboratory, opens a new therapeutic opportunity for modified retinals that help improve vision, and offers a major improvement over current therapeutics designed to perturb cell signaling in the eye.
"Our study demonstrates a complete transition from a one-way activation of a GPCR into a self-renewing, recycling activation mechanism by the mere addition of a cyclohexyl chemical group to the retinal. These findings exemplify the possibility of reprogramming GPCRs into self-renewing machines that can be controlled by external cues. This biochemically induced function will be helpful in treating people with vision impairment, and opens up several avenues for more efficient GPCR-based therapeutics," said Sahil Gulati, first author of the study and graduate student in the department of pharmacology at Case Western Reserve University School of Medicine. Krzysztof Palczewski, professor and chair of the department, served as senior author for the study.
The discovery digs into the biochemistry of vision and why the chemical configuration of the retinal is critical for humans to perceive light. Humans see with the help of an extremely sensitive protein in the back of the eye called rhodopsin, which attaches to a retinal molecule to sense light. Light photons enter the eye and get absorbed by the retinal-rhodopsin complex, activating a cascade of downstream signals that constitute vision. Importantly, the retinal awaits light photons while maintaining a particular chemical configuration—11-cis retinal—and transforms into a second configuration—all-trans retinal—after it absorbs a light photon. But this transformation is a one-way ticket, and requires an army of specialized proteins to convert all-trans-retinal back to 11-cis-retinal. Inherited mutations in any of these specialized proteins can cause retinal degenerative diseases. Researchers who want to treat such diseases must repair or bypass the mutated proteins to maintain this retinal conversion in humans.
"Our study shows how a chemical modification in the retinal can activate downstream visual signaling in a photocyclic manner. This chemical modification allows retinal to self-renew using thermal energy, and hence does not require any additional enzymes," Gulati said.

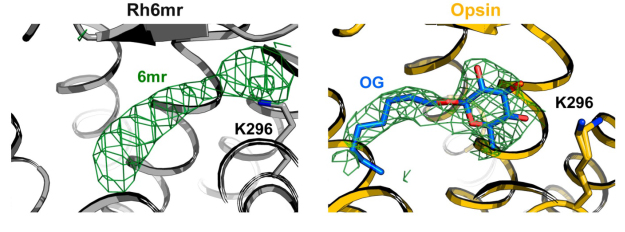

The researchers discovered the self-renewing mechanism in bovine rhodopsin, which is exceptionally similar to human rhodopsin. The researchers used purified proteins in their laboratory to show that their modified retinal binds to bovine rhodopsin and successfully activates specific human eye proteins in response to light, and when complete, it uses thermal energy to slowly return to its inactive form that can be repeatedly reactivated with light. The findings, which also depended on molecular protein structures determined via diffraction studies at the Northeastern Collaborative Access Team (NE-CAT) 24-ID-C beamline at the APS, suggest that retinal molecules with the specific chemical structure could reversibly stimulate rhodopsin that drives human vision. (The APS is an Office of Science user facility.)
"Although one-way reaction mechanisms of GPCRs enable them to function normally in the human body, they cannot renew their activator molecules, and hence are dependent on continuous administration of drug molecules to treat disease symptoms. Controlled cyclic activation of GPCRs makes them self-sustainable," said Gulati.
The newly discovered mechanism may enhance current approaches to treat retinal degenerative diseases and other nerve cell disorders. Researchers can biochemically tinker with the retinal and the retinal-bound rhodopsin molecules to improve their ability to turn on and off proteins in the eye. Said Gulati, "Our next steps will be to design a new class of modified retinals with faster thermal recovery, and to test their efficiency as human therapeutic modalities."
See: Sahil Gulati, Beata Jastrzebska, Surajit Banerjee, Ángel L. Placeres, Przemyslaw Miszta, Songqi Gao, Karl Gunderson, Gregory P. Tochtrop, Sławomir Filipek, Kota Katayama*, Philip D. Kiser, Muneto Mogi, Phoebe L. Stewart, and Krzysztof Palczewski**, “Photocyclic behavior of rhodopsin induced by an atypical isomerization mechanism,” Proc. Natl. Acad. Sci. USA 114(13), E2608 (Published online March 13, 2017). DOI: 10.1073/pnas.1617446114
Correspondence: * kxk477@case.edu, ** kxp65@case.edu
This work was supported by funding from the National Institutes of Health (grants EY021126, EY027283 and EY025214 to K.P.; EY025214 to B.J.; CA157735 to G.T.), JSPS Overseas Research Fellow (K.K.), the Department of Veterans Affairs (grant IK2BX002683 to P.D.K.) and National Science Foundation (grant MCB-084480 to G.T.). The study was based upon research conducted at the Northeastern Collaborative Access Team beamlines, which are funded by the National Institute of General Medical Sciences from the National Institutes of Health (grant P41 GM103403). The Pilatus 6M detector on the 24-ID-C beamline is funded by a NIH-ORIP HEI grant (S10 RR029205). This research used resources of the Advanced Photon Source, a U.S. Department of Energy (DOE) Office of Science User Facility operated for the DOE Office of Science by Argonne National Laboratory under Contract No. DE-AC02- 06CH11357.
