High-Entropy Alloys Could Lead to a Wide Range of Complex Materials



Materials scientists are continually developing new materials to do different jobs or to do the same job better; these new materials may be lighter, stronger, tougher, and/or even less expensive. High-entropy alloys are currently of great interest to materials scientists due to their valuable mechanical properties and many potential applications. The alloy studied in this research carried out at three U.S. Department of Energy (DOE) laboratories, is helping scientists understand how to design better materials for extreme environments, such as high-radiation and aerospace applications.

Alloys are typically a mixture of one or two primary metals and much lower concentrations of secondary elements, but researchers are now designing new alloys—called high-entropy alloys or multi-principal element alloys—in which five or more elements are present in nearly equal concentrations. These alloys have high-entropy of mixing, which stabilizes the solid solution phase.

High-entropy alloys have been known about for roughly a decade, but until this study, researchers focused on alloys that were perfectly mixed. Using experimental and theoretical techniques, these researchers, from Oak Ridge National Laboratory (ORNL), The University of Tennessee, the University of Illinois at Urbana-Champaign, the National Energy Technology Laboratory, the URS Corporation, Materials Development, Inc., and Argonne National Laboratory, introduced new ways to characterize the atomic mixing, and discovered that, even when the mixing is incomplete, these alloys may retain many of their exceptional engineering properties. These properties include high strength at high temperatures, and enhanced mechanical properties such as ductility, toughness, and resistance to corrosion, wear, and fatigue.

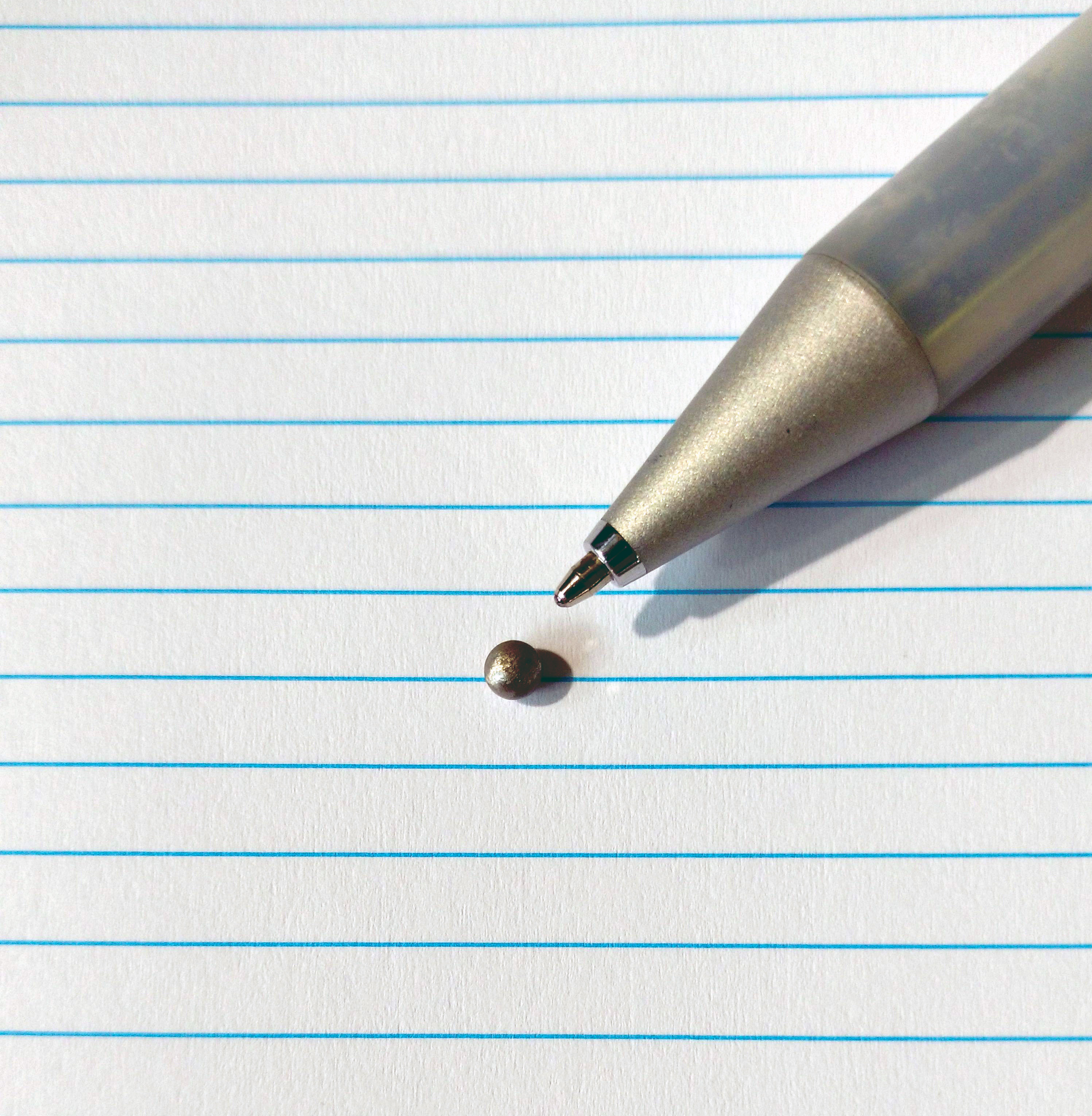

The first round of experiments (high-resolution scanning electron microscopy and transmission electron microscopy) were performed at Oak Ridge National Laboratory. The researchers observed the structural evolution of the alloy Al1.3CoCrCuFeNi as it cooled from a high-temperature liquid (1400oC) to a room-temperature solid. To keep the material from being altered by contact with a solid, a tiny bead of the material (~1/8-in. diameter, Fig. 1) was levitated in a flow of argon gas above the nozzle. As it floated, the bead was heated with a high-powered laser and then allowed to cool.

Neutron diffraction studies were performed at the Spallation Neutron Source at ORNL, an Office of Science user facility. Neutron scattering reveals the atomic structure of a material, allowing scientists to watch the evolution of the atomic structure of the alloy as it changed phases from liquid to solid.

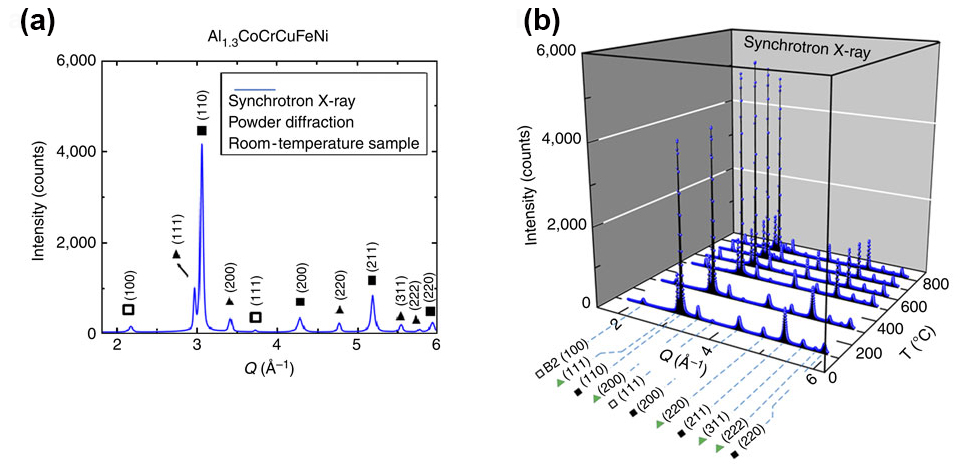

The structure of the alloy in different phases at different temperatures was further revealed in high-energy synchrotron x-ray diffraction studies at the Argonne Advanced Photon Source, also an Office of Science user facility, using X-ray Science Division beamline 6-ID-D (Fig.2).

The experiments determined the structural-order parameters of the alloy in the temperature range of the experiments. During cooling, the material evolved from disordered to partially ordered solid-solution structures, and ultimately to a mixed phase room temperature structure.

The ordering behavior of the atoms was expressed quantitatively to better distinguish the exact structures during cooling. Quantifying the observed phases allowed researchers to create a unified structural model, rather than just categorizing structures merely as ordered or disordered.  (Quantification helps researchers to understand the relationship between temperature and structure in complex alloys.) The experimental results were compared to simulations carried out at the DOE National Energy Technology Laboratory, which were used to predict the phase formation from the liquid, and can identify the local-ordering trends in the liquid, which influence the formation of solid phases in the alloy. Simulations and experiments show strong evidence of the local structural similarity between liquid and solid phases.

By describing structural models quantitatively, more complex multiphase materials can be developed. Research is under way to develop high-entropy alloys for practical applications. For example, these alloys could be used in a high-radiation environment. The high-entropy alloy design strategy could be applied to many complex materials, not just with the goal of creating single-phase solid solutions.

Dana Desonie

See: Louis J. Santodonato1,2*, Yang Zhang3**, Mikhail Feygenson1, Chad M. Parish1, Michael C. Gao4,5, Richard J.K. Weber6,7, Joerg C. Neuefeind1, Zhi Tang2, and Peter K. Liaw2***, “Deviation from high-entropy configurations in the atomic distributions of a multi-principal-element alloy,” Nat. Commun. 6, 5964 (2015). DOI: 10.1038/ncomms6964

Author affiliations: 1Oak Ridge National Laboratory, 2The University of Tennessee, 3University of Illinois at Urbana-Champaign, 4National Energy Technology Laboratory, 5URS Corporation, 6Materials Development Inc., 7Argonne National Laboratory

Correspondence: *8ls@ornl.gov, **zhyang@illinois.edu, ***pliaw@utk.edu
